Mass Flow Spirals

The Ryson Mass Flow Spirals are designed to handle full and empty bottles, cans, jars and other similar containers.

The Ryson Mass Flow Spirals are ideal for canning and bottling operations where units need to be conveyed vertically in mass. Products are conveyed up or down in a continuous single file or mass flow at a rate of 2000 units per minute. Ryson Spirals have a small footprint and provide considerable space savings compared to conventional methods. They are available in powdered coated carbon steel, stainless steel and wet environment versions.

The Mass Flow Spiral conveyors are based on the already proven and reliable Ryson Spiral technology. Only one drive motor is needed, equating to substantial savings in controls and systems integration. All Ryson Spirals are designed for low maintenance and long life. Many spirals operate 24 hours a day, 7 days a week.

Download Product Spec Sheet Request A Quote
Ryson mass flow spiral animation

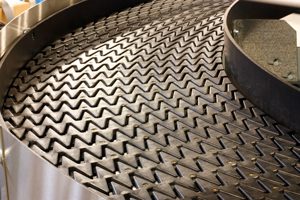

Ryson Mass Flow Spiral Conveyor Nesting Slats

Nesting Slats

The Ryson Mass Flow Spirals feature nesting slats with a flat conveying surface and no gaps. They can be delivered with 10”, 12”, 16” or 20” wide slats depending on the needed flow rates. The Mass Flow Spirals are equipped with extended in and outfeed tangents to facilitate smooth and reliable side transfer to and from external conveyors.

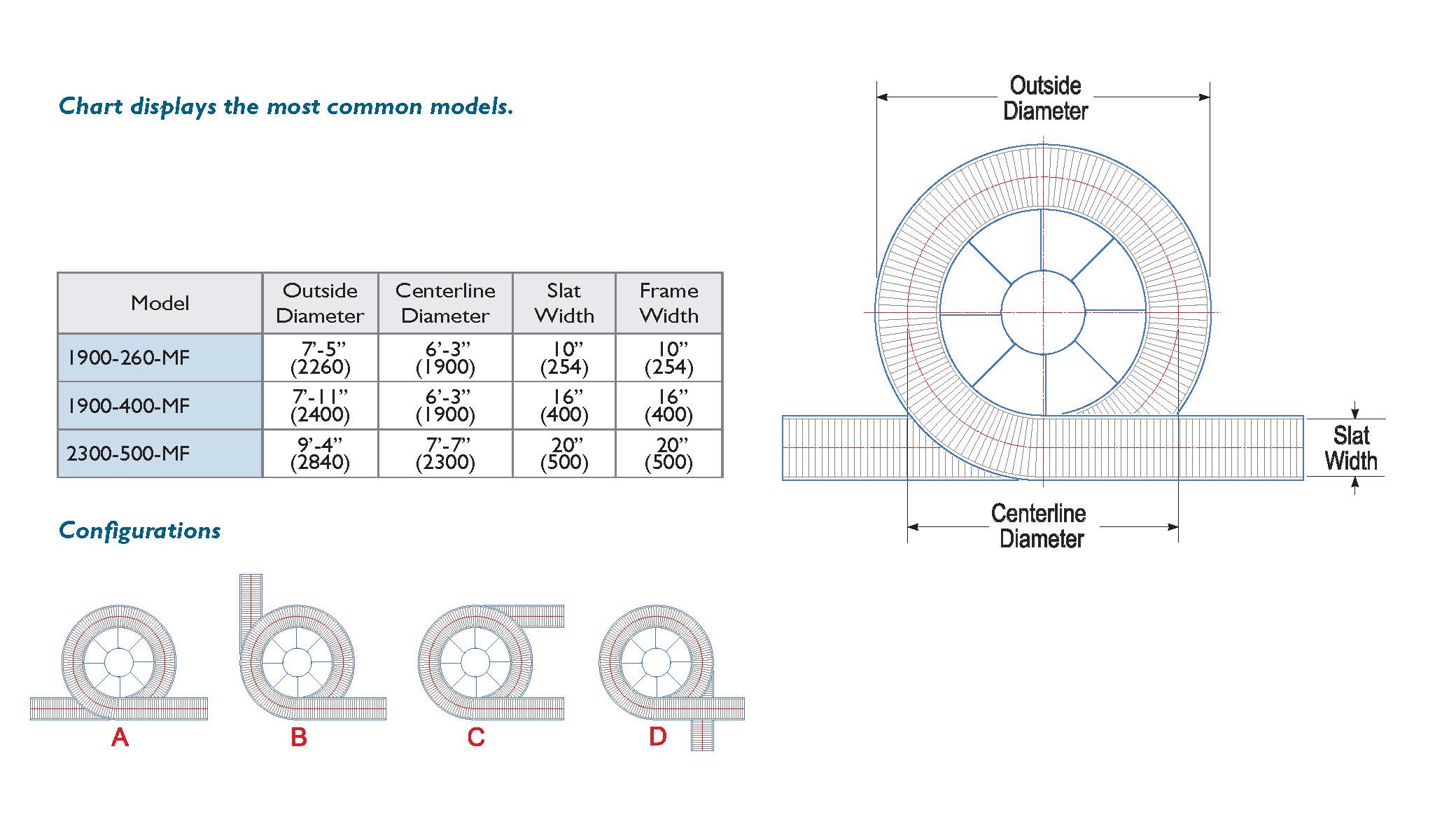

Mass Flow Conveyor Size Chart

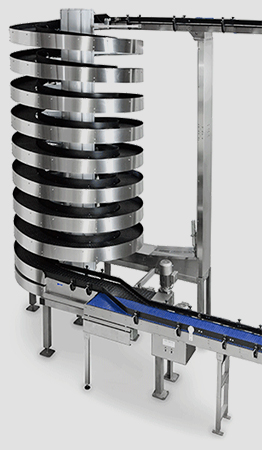

Tall Ryson Stainless Steel Mass-Flow Spiral Conveyor

For more details on the Ryson Mass Flow Vertical Conveyors, please visit our Ryson YouTube Channel, or read current news and installation stories about the Mass Flow Spirals on the Ryson News Blog.

Application Example: Mass Flow Spiral coming off a bulk de-palletizer.

Ryson Spirals for Food and Beverage ApplicationsHigh Capacity Mass Flow Spirals (Models 1900-400 & 2400-500) are able to provide space-savings in bulk de-palletizing of bottles, cans and jars. Use of the Ryson Mass Flow spiral conveyor in conjunction with either high or low-level bulk de-palletizers provides yet another way to increase  productivity.


Many Features and Benefits

There are many features. benefits and options to the Ryson Spiral Conveyors. Read more about them on our Spiral Conveyor Page, or download our Mass Flow Spiral Conveyor Brochure.

Download the information on the Ryson Spiral Conveyor here.

For more details on the Ryson Vertical Conveyor, please visit our Ryson YouTube Channel, or read current news and installation stories on the Ryson Blog.


Controls and Integration

Most of our Spiral Conveyors are shipped without controls because they normally integrate with an overall conveyor control system. Our spirals always include an inverter duty gear motor and two proximity sensors, one for the automatic chain tensioner and one for the overload protection device. We also offer a number of controls and pre-wiring options.

A Variable Frequency Drive (VFD) is required for proper operation of the spirals. All Ryson Spirals are thoroughly shop tested prior to shipment, but depend on proper integration with the overall conveyor system for optimum performance. Read about our Integration instructions.

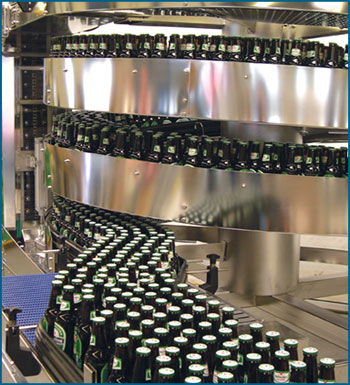

Ryson Spiral conveying bottles
