Narrow Trak Spiral

Narrow Trak Spiral Conveyor for Small Products

Ryson Narrow Trak Spiral Conveyors move smaller products vertically while minimizing floor space. They are designed for small cartons, lightweight packages, bottles, containers, and other compact loads that need reliable transfer between elevations. With 6 inch or 9 inch nesting slats, a 1,600 lb total weight capacity, and compact spiral configurations, Narrow Trak helps packaging, food and beverage, CPG, pharmaceutical, nutraceutical, and manufacturing lines maintain continuous product flow in tight layouts.

What products can a Narrow Trak Spiral Conveyor handle?

Narrow Trak is designed for smaller loads that require stable vertical movement and reliable transfers. Typical products include small cartons, lightweight packages, bottles, personal care containers, pharmaceutical packages, nutraceutical containers, food packages, beverage containers, and compact CPG items.

The flat nesting slats support end-transfer and side-transfer applications. For smaller and lighter products, Ryson’s micro-pitch transfer conveyor can help reduce the unpowered gap between the spiral and adjoining conveyors.

Applications for Narrow Trak Spiral Conveyors

Narrow Trak is used when space is limited, product flow must remain continuous, and smaller products need to move between elevations without excessive handling or adjustment.

Food and beverage: Convey bottles, containers, packaged foods, and beverage items between processing, packaging, and accumulation areas.
CPG and Personal Care: Support packaging lines with frequent product-size variation, where side-gripper adjustments can slow changeovers.
Pharmaceutical and Nutraceutical: Move small packaged products or containers with controlled transfers and compact vertical movement.
Industrial and Manufacturing: Connect production, inspection, packaging, and downstream conveyor levels while preserving valuable floor space.

Our nesting slat design has the capacity to reliably end-transfer small cartons and packages or side-transfer small bottles or containers in a single file or in a continuous mass flow.

The Narrow Trak Spirals offer a significantly larger elevation change capacity than what is currently available in the small package marketplace. They are also a good alternative to side gripper conveyors because they can run at high speeds and do not need to be adjusted for varying product sizes. These spirals are powder coated to assure a durable finish. Also available in hybrid stainless steel versions suitable for wet applications. The Narrow Trak Spirals are especially beneficial for the food, beverage, pharmaceutical, nutraceutical, personal care market and food product companies.

How does the micro-pitch transfer improve small product handling?

The Ryson micro-pitch transfer conveyor is slave-driven from the drive or idle-end shafts and geared to match the spiral speed. This helps minimize the unpowered gap between the spiral and adjoining conveyors, making it easier to transfer smaller and lighter products at the infeed and discharge.

For end-transfer applications, friction inserts can be added to the slats when additional grip is required. This can support steeper incline or decline angles and greater elevation change with the same number of turns, depending on the application.

Ryson Spiral Conveyors have many unique features that make them ideal Vertical Conveying Solutions. Many of our features are designed to save money in the long term, essentially lowering your total cost of ownership.

Design Flexibility: Our unique design offers flexibility of configuration. It also adds the ability to field modify to accommodate changing future needs at a fraction of the cost of a new conveyor.

Nesting slats The nesting slats provide an efficient flat conveying surface without gaps and can be used for end-transfer or side-transfer. Available in 6” and 9” wide versions. Friction inserts can be added when additional grip is required.Our efficient rolling friction chain-slat design only needs a single drive, resulting in substantial savings in energy, controls and systems integration.

Our efficient rolling friction chain-slat design only needs a single drive, resulting in substantial savings in energy, controls and systems integration.

Narrow Trak Spirals ship in one piece and leave our factory pre-assembled and pre-tested. Installation is generally an efficient process and reduces time for implantation and integration.

Our Spirals and components are designed for reliability, low maintenance and long life. They have an impressive up-time record reducing the total cost of ownership.

Click below to read details about more of our features:

Small Footprint:

The proprietary low friction chain slat belt allow Ryson Spiral Conveyors to operate within a small footprint, saving valuable floor space. See the chart below for specific dimensions on our most popular models.

Modular Design:

Our innovative modular design allows Ryson to customize any Spiral Conveyor with ease and can also be economically modified in the field to accommodate changing needs. All spiral conveyors are made to order and can operate up or down in a clockwise or counterclockwise rotation and can optionally be reversible. The position and length of the in feed tangent on up spirals and out feed tangent on down spirals can be customized to meet specific layout requirements.

One Drive:

Only one drive motor is required, resulting in substantial savings in energy, controls and systems integration.

Made To Order:

All Ryson Spiral Conveyors are made to order and comes in a wide range of sizes and configurations.

Built in Protection:

All Ryson Spiral Conveyors are equipped with an automatic chain tensioning device and built-in overload protection as a standard. This helps save both the Spiral and the product it is conveying.

Horizontal Entry and Exit:

All Ryson Spirals are designed with a horizontal section at the in and outfeed. This assures a safe and reliable transition between the spiral and adjoining conveyors without product damage and undue wear.

Easy to Install:

Most Spiral Conveyors are shipped in one piece, pre-assembled and pre-tested, drastically reducing time and cost of installation and integration.

Easy to Field Modify:

The Ryson modular design makes it easy to field modify our spirals in case of unplanned installation changes or to reconfigure and repurpose the spirals at a later date. Click to see some examples:

High Throughput:

The Spiral Conveyors convey loads up or down in a continuous flow, facilitating high throughput. Many spirals can operate at speeds in excess of 200 FPM and are optionally reversible.

Color and Coating Versions:

Ryson Spirals are powder coated carbon steel with choice of any standard RAL color. They are also available in hybrid versions suitable for wet environments or stainless steel versions for washdown applications.

Low Maintenance:

Ryson Spirals are designed for low maintenance and long life. Only high quality components are used throughout. All bearings are sealed for life and need no further lubrication. The chain is of heavy duty nickel plated construction and needs only infrequent lubrication. The slats are made of a nylon composite, need no maintenance and can easily be replaced as single components without the use of special tools. Ryson has a full staff of factory trained service technicians ready to assist. All of our service techs are PMMI Certified Trainers. All of these factors contribute to Ryson’s low total cost of ownership.

Most Common Models

Model

Outside
Diameter

Centerline
Diameter

Slat
Width

Frame
Width

Narrow Trak Spirals

1100-150-NT

4’-2” (1270)

3’-8” (1100)

6” (150)

6” (160)

1200-230-NT

4’-9” (1450)

3’-11” (1200)

9” (230)

9” (240)

1700-150-NT

6’-2” (1870)

5’-7” (1700)

6” (150)

6” (160)

1700-230-NT

6’-5” (1950)

5’-7” (1700)

9” (230)

9” (240)

High Speed Ryson Narrow Trak Spiral at a Bottling Plant

Ryson Product Line

Ryson Narrow Trak Spiral

Why choose Ryson for compact vertical conveying?

Ryson specializes in vertical conveying solutions for industrial operations that need reliable product flow, space savings, and long-term equipment value. Narrow Trak Spirals combine compact design, application-specific slat widths, micro-pitch transfer options, one-drive efficiency, and pre-tested construction.

Buyers choose Ryson when they need more than a generic conveyor. Ryson supports made-to-order configurations, field-modifiable modular design, installation and integration support, parts and service, and technical guidance for food, beverage, CPG, manufacturing, and packaging applications.

Ryson Narrow Trak Spiral Conveyors are compact vertical conveyors for smaller products such as bottles, containers, small cartons, and packages. They help reduce floor space, maintain continuous product flow, improve transfer reliability, and support high-throughput packaging and manufacturing environments.

Frequently Asked Questions

What products are best for Narrow Trak Spirals?

Narrow Trak Spirals are best for small cartons, small packages, bottles, containers, nutraceutical products, personal care items, pharmaceuticals, and food products that require compact vertical movement.

Can Narrow Trak Spirals handle end transfers?

Yes. The nesting slat design supports reliable end-transfer of small cartons and packages, and Ryson also offers micro-pitch transfer equipment that reduces the unpowered gap between the spiral and adjoining conveyors. This helps smaller and lighter products transfer more reliably into and out of the spiral, especially when end transfer is required at higher speeds.

How does Narrow Trak compare to a side-gripper conveyor?

Narrow Trak Spirals can be a good alternative to side-gripper conveyors because they can run at high speeds and do not require adjustment for varying product sizes.

Are Narrow Trak Spirals suitable for wet applications?

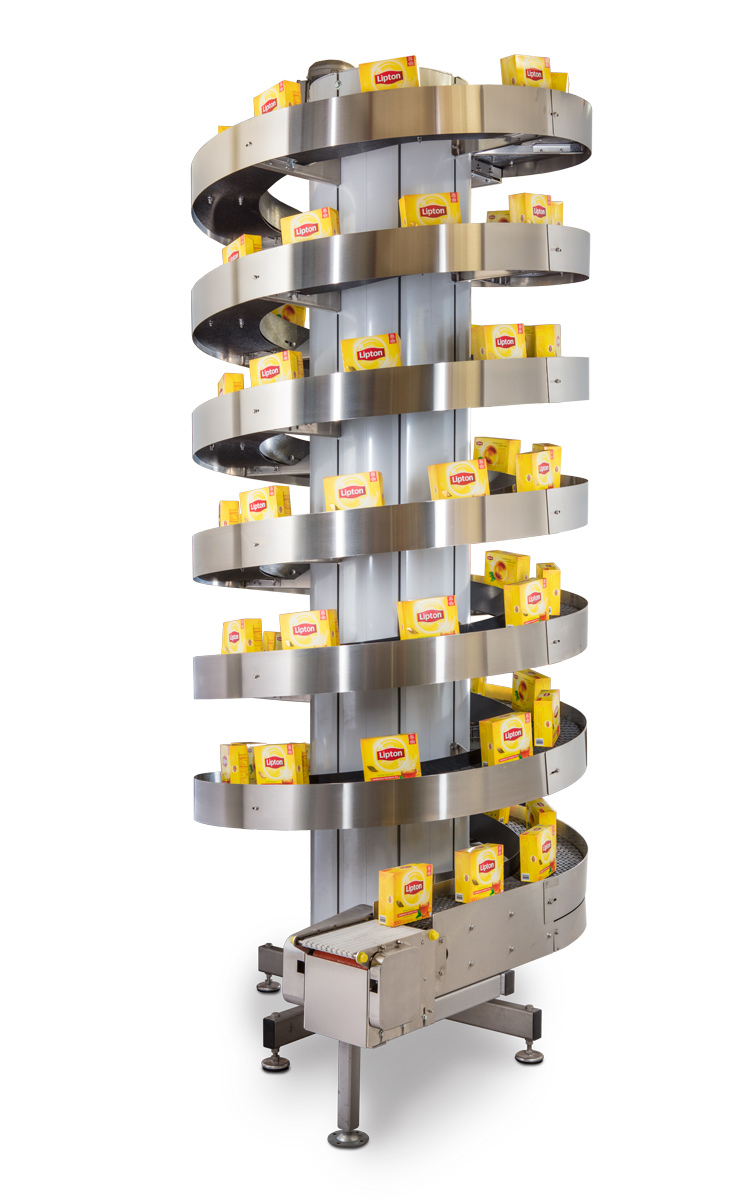

Yes. Ryson notes that Narrow Trak Spirals are available in hybrid stainless steel versions suitable for wet applications.

What slat widths are available for Narrow Trak Spirals?

Ryson Narrow Trak Spirals feature 6 inch and 9 inch slat widths, making them our most compact option for smaller products and tight layouts.

What industries commonly use Narrow Trak Spiral Conveyors?

Common industries include food and beverage, CPG, personal care, pharmaceutical, nutraceutical, industrial manufacturing, packaging, bottling, and distribution operations. The best-fit applications usually involve limited floor space, small product sizes, and the need for continuous and reliable vertical product flow.
