Apr 27

Ryson Accumulation Buffers efficiently utilize vertical space to provide dynamic storage or conveying where products need time for cooling, drying or curing. The already proven spiral technology allows this to happen with a small footprint. The Vertical Accumulation Buffers utilize one bidirectional spiral conveyor or combine two or more spirals for vertical flow.

Ryson Dynamic Vertical Accumulation Buffer

The Ryson Spiral Conveyor can be used with a robotic pick and place module for dynamic buffering.

The Ryson Accumulation Buffers can be used to take up surges between manufacturing processes and can provide dynamic buffering during shorter production or packaging line interruptions. This will reduce downtime and increase productivity.

The Ryson Spiral Conveyor can also be used in conjunction with a robotic pick and place module for dynamic buffering. The robot loads the spiral conveyor directly, and accumulates products during over-supply and purges during times of under-supply. This dynamic Buffering system compensates for intermittent operating interuptions and significantly improves overall production efficiency. Click Here to download an application spotlight (case study) to read about the set-up in detail.

Visit our site more information about using Ryson Spiral Vertical Conveying Technology for accumulation and buffering. Watch the video below to see how customers have used Ryson Spirals for their vertical buffering solutions.



Post to Twitter

Tagged with:
May 21

The Ryson spiral can operate bidirectionally and becomes an efficient dynamic accumulation buffer when used in conjunction with a pick-n-place robot.

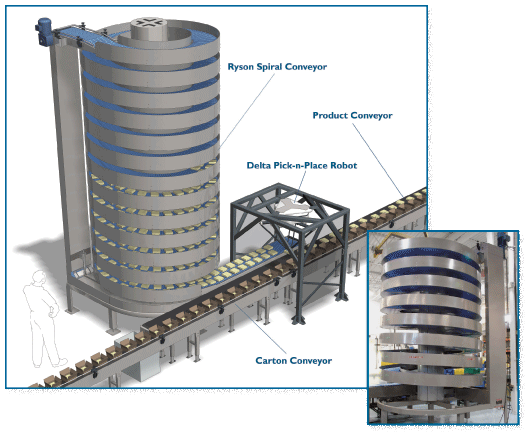

Ryson Spiral used for dynamic buffering

Ryson Spiral Conveyor used in a Dynamic Buffering System.

In the sample above, two conveyors run side by side and parallel to the spiral in/outfeed conveyor. One conveyor handles products from the filler and the other convey empty cases. A Delta pick-n-place robot located in front of the spiral loads products into the empty cartons or feeds the spiral when needed. The spiral conveyor provides vertical accumulation and buffers any imbalances in the flow of products or supply of cartons. The spiral is reversible and accumulates products during over-supply and purges during times of under-supply, where the robot will load the cartons directly from the spiral. This dynamic buffering system compensates for intermittent operating interruptions and significantly improves overall production efficiency.

To read a complete case study, download our Application Spotlight on Dynamic Buffering

Post to Twitter

Tagged with:
Mar 12

This video shows examples of how Ryson Spiral conveyor technology is used to solve some interesting vertical accumulation and dynamic Continue reading »

Post to Twitter

Tagged with:
Mar 12

This video shows examples of how Ryson Spiral conveyor technology is used to solve some interesting vertical accumulation and dynamic Continue reading »

Post to Twitter

Tagged with:
Mar 12

This video shows examples of how Ryson Spiral conveyor technology is used to solve some interesting vertical accumulation and dynamic Continue reading »

Post to Twitter

Tagged with:
Mar 12

This video shows examples of how Ryson Spiral conveyor technology is used to solve some interesting vertical accumulation and dynamic Continue reading »

Post to Twitter

Tagged with:
Mar 12

This video shows examples of how Ryson Spiral conveyor technology is used to solve some interesting vertical accumulation and dynamic Continue reading »

Post to Twitter

Tagged with:
